Types of Carton Labeling Machines: Which One Is Right for Your Packaging Line?
Carton labeling machines are widely used in pharmaceutical, cosmetic, food, and consumer goods packaging. However, not all labeling systems are designed for the same carton type or production requirement.
Choosing the right machine depends on several factors, including carton shape, label position, production speed, and regulatory requirements. Understanding the differences between the main types of carton labeling machines can help manufacturers improve labeling accuracy, reduce downtime, and achieve better production efficiency.

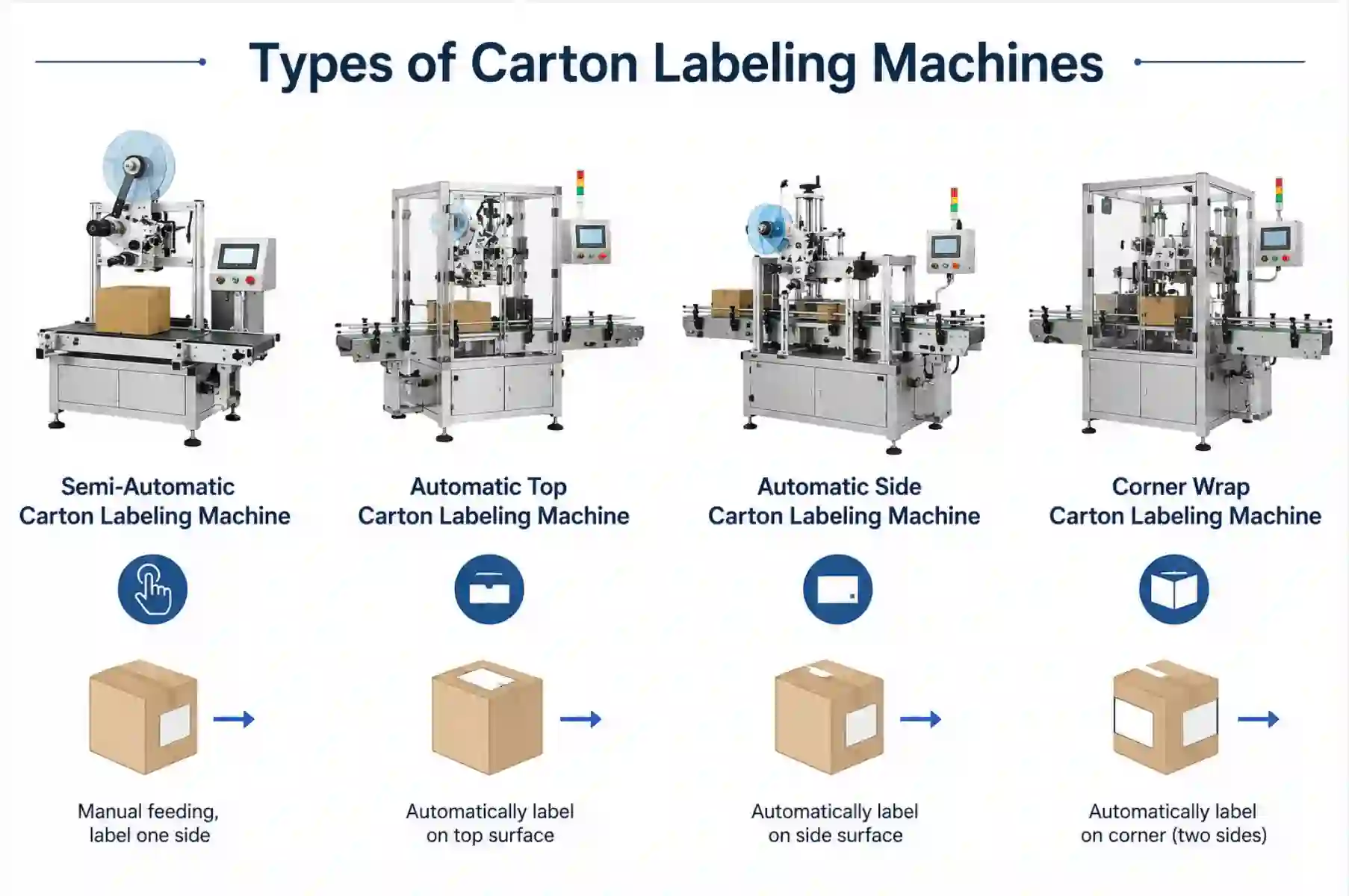

Quick Comparison of Carton Labeling Machine Types
| Machine Type | Label Position | Best For | Key Advantage |
|---|---|---|---|
| Top Labeling Machine | Top surface | Flat cartons | Simple and cost-effective |
| Side Labeling Machine | Side panel | Cosmetic and retail cartons | Flexible label placement |
| Corner Labeling Machine | Top and side corner | Pharmaceutical packaging | Tamper-evident labeling |
| Diagonal Carton Labeling Machine | Flat and square cartons | High-precision applications | Superior labeling consistency |
| Wrap-Around Labeling Machine | Full perimeter | Specialty packaging | Maximum label coverage |
For most manufacturers, the decision comes down to the carton design and the required labeling accuracy.
Top Labeling Machines
Top labeling machines apply labels directly to the upper surface of cartons as they move along a conveyor.
They are commonly used for standard pharmaceutical cartons, food boxes, and consumer product packaging where the label only needs to appear on the top panel.
Typical Applications
-
Medicine cartons
-
Tea and coffee boxes
-
Electronics packaging
-
Consumer goods cartons
Why Choose Top Labeling?
-
Easy to operate
-
Lower investment cost
-
Suitable for most standard carton designs
-
Easy integration into existing packaging lines
For companies running standard rectangular cartons, top labeling remains the most widely used solution.
Side Labeling Machines
Side labeling machines apply labels to one or both sides of a carton.
This configuration is often preferred when product information or branding needs to remain visible on retail shelves.
Typical Applications
-
Cosmetic cartons
-
Personal care products
-
Retail packaging
-
Promotional labeling
Why Choose Side Labeling?
-
Flexible label positioning
-
Better shelf presentation
-
Supports multiple label formats
Side labeling is particularly popular in cosmetic and consumer goods industries where packaging appearance directly influences purchasing decisions.
Corner Labeling Machines
Corner labeling machines apply a single label across two carton surfaces, typically covering both the top and side panels.
The label acts as a seal, providing visible evidence if the package has been opened or tampered with.
Typical Applications
-
Pharmaceutical packaging
-
Healthcare products
-
Nutraceutical cartons
-
Medical devices
Why Choose Corner Labeling?
-
Supports tamper-evident packaging
-
Improves product security
-
Helps meet regulatory requirements
Many pharmaceutical manufacturers use corner labeling to enhance product traceability and consumer confidence.
Diagonal Carton Labeling Machines
Diagonal carton labeling machines are designed for applications where label positioning accuracy is critical.
Instead of feeding cartons in a traditional straight-line configuration, cartons are guided at a controlled angle during labeling. This improves carton stability and reduces movement during label application.
Typical Applications
-
Pharmaceutical cartons
-
Cosmetic cartons
-
Healthcare products
-
High-speed packaging lines
-
Flat and square cartons
Why Choose Diagonal Labeling?
-
Higher labeling precision
-
Better carton positioning control
-
Reduced label skewing
-
Consistent performance at higher speeds
For manufacturers experiencing alignment issues with conventional labeling systems, diagonal labeling technology often provides a more stable and reliable solution.
Wrap-Around Labeling Machines
Wrap-around labeling systems are typically used when labels need to cover multiple surfaces or nearly the entire package.
Although less common for traditional cartons, they can be useful for specialty packaging designs and premium retail products.
Typical Applications
-
Specialty cartons
-
Gift packaging
-
Promotional packaging
Why Choose Wrap-Around Labeling?
-
Maximum branding space
-
Enhanced shelf appeal
-
Premium package presentation
How to Choose the Right Carton Labeling Machine
Before investing in a labeling system, manufacturers should evaluate the following factors:
Carton Shape
Different carton designs require different labeling methods.
| Carton Type | Recommended Machine |
|---|---|
| Flat Cartons | Top Labeling or Diagonal Labeling |
| Square Cartons | Diagonal Labeling |
| Tamper-Evident Packaging | Corner Labeling |
| Specialty Packaging | Wrap-Around Labeling |
Production Speed
High-volume production lines generally benefit from fully automatic systems with advanced positioning and inspection capabilities.
Label Placement Requirements
The location of the label directly determines which machine configuration is required.
Future Line Expansion
If future automation upgrades are planned, selecting equipment that can integrate with cartoners, coding systems, vision inspection systems, and checkweighers can reduce long-term costs.
Which Carton Labeling Machine Is Best?
There is no universal solution for every packaging line.
Top labeling machines are ideal for standard carton applications.
Side labeling machines are commonly used for retail-focused packaging.
Corner labeling machines provide tamper-evident protection for regulated industries.
For manufacturers requiring higher positioning accuracy, especially when handling flat or square cartons at higher speeds, diagonal carton labeling machines often deliver the best balance of precision, stability, and production efficiency.
The right choice ultimately depends on your carton design, production capacity, and labeling requirements.
FAQ
What is the most common type of carton labeling machine?
Top labeling machines are the most commonly used because they work well with standard flat cartons across multiple industries.
What is the difference between top labeling and diagonal labeling?
Top labeling applies labels from above in a straight-line process, while diagonal labeling introduces cartons at an angle to improve stability and labeling accuracy.
Which labeling machine is best for pharmaceutical cartons?
Corner labeling and diagonal labeling machines are widely used in pharmaceutical packaging because they support higher accuracy and regulatory compliance requirements.
Can carton labeling machines be integrated into automatic packaging lines?
Yes. Modern carton labeling machines can be integrated with cartoning machines, coding systems, vision inspection systems, checkweighers, and other end-of-line packaging equipment.
