Control System: Siemens PLC, Touch Screen & Variable Frequency Control
Vacuum Pump: 40 m³/h Pumping Rate
Air Requirement: 0.03 m³/min @ 0.7 MPa
Power: 4.0 kW
Machine Size: 1140 × 700 × 1630 mm
Weight: 400 kg Net / 520 kg Gross
Priority: Our machine specifications can be customized, please contact us.
Main Technical Parameters
Item
Specification
Model
CGN208-D
Production Capacity
25,000–30,000 capsules/hour*
Capsule Sizes
000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5#
Filling Material
Powder, Pellets, Granules
Mold Change Time
5–10 min
Total Power
4.0 kW
Compressed Air Consumption
0.03 m³/min
Air Pressure
0.7 MPa
Vacuum Pump Capacity
40 m³/h
Machine Dimensions (L×W×H)
1140 × 700 × 1630 mm
Package Dimensions (L×W×H)
1720 × 870 × 1750 mm
Air Cargo Package Size
1650 × 800 × 1450 mm
Net Weight
400 kg
Gross Weight
520 kg
*Production capacity varies depending on capsule size.
Main Components
Electrical Components
Component
Brand
Touch Screen
Siemens
PLC
Siemens
Frequency Inverter
Siemens
Circuit Breaker
Schneider
AC Contactor
Schneider
Relay
Omron
Switching Power Supply
Mean Well
Vacuum Pump
Ningbo Hongyi
Pneumatic Components
Component
Feeding Cylinder
Swing Arm Cylinder
Discharge Cylinder
Capsule Locking Cylinder
Tilting Cylinder
Solenoid Valve
Air Regulator
Air Filter
Magnetic Switch

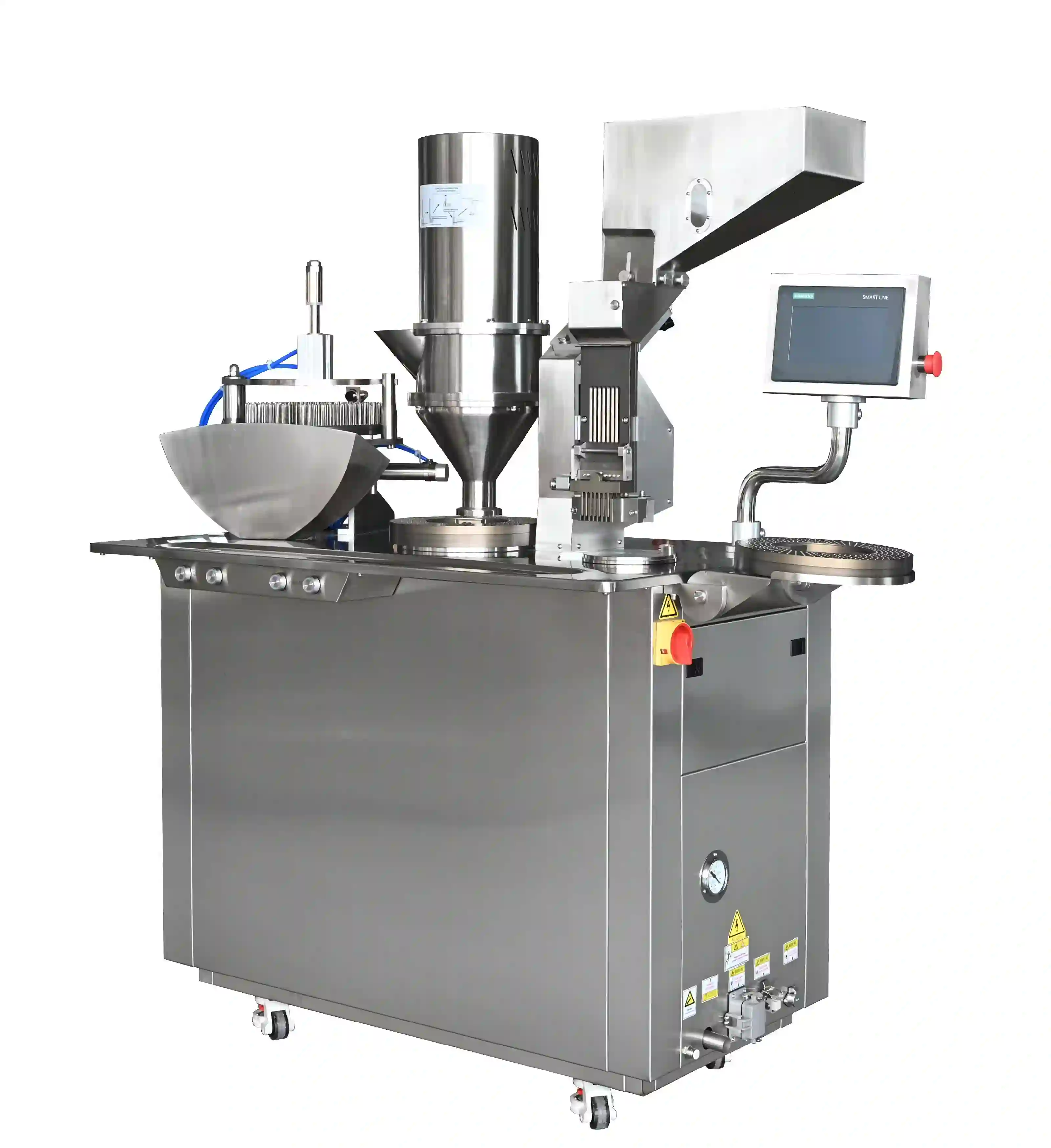

KXT208-D Semi-Automatic Capsule Filling Machine is an upgraded model developed from the DTJ-C capsule filling machine.
Compared with the previous model, capsule feeding, orientation, and vacuum separation operations are simpler and more efficient. The redesigned capsule orientation assembly adopts cylindrical pin positioning, reducing mold replacement and adjustment time from approximately 30 minutes to 5–8 minutes.
The machine integrates electrical and pneumatic control, automatic counting, Siemens PLC control, touch screen operation, and variable frequency speed regulation. It is suitable for small and medium-sized pharmaceutical manufacturers, pharmaceutical research institutions, and hospital preparation rooms.
Key Features
Quick Mold Change
The cylindrical pin positioning structure reduces mold replacement and adjustment time from approximately 30 minutes to 5–8 minutes.
Improved Capsule Handling
Optimized capsule feeding, orientation, and vacuum separation system improves capsule loading efficiency.
Siemens PLC & Touch Screen Control
Equipped with Siemens PLC, touch screen operation, automatic counting, and variable frequency speed control.
Electrical & Pneumatic Integration
Combined electrical and pneumatic control system for stable operation.
Multiple Capsule Sizes
Compatible with capsule sizes:
000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5#
Suitable Filling Materials
Powder (non-moist and non-sticky)
Pellets
Granules
Optional Molds
Available capsule molds:
000#
00L#
00#
0L#
0#
1#
2#
3#
4#
5#
Mold Package Information
Item
Qty
Capsule Disc
1 Set
Pin Disc
1 Pc
Capsule Feeding Plate
1 Pc
Capsule Sorting Plate
1 Pc
Capsule Feeding Fork
1 Pc
Regulating Bar
1 Set
Total Mold Package Weight: 12 kg
Capsule Disc Package Size: 310 × 310 × 90 mm
Standard Packing List
Equipment
Main Machine × 1
Vacuum Pump × 1
Filter Bucket × 1
Tools
Tool Box
Adjustable Wrench
External Hex Wrenches
Internal Hex Wrench Set
Needle Nose Pliers
Oil Can
Flat Screwdriver
Phillips Screwdriver
Powder Scraper
Cover Plate
Mold Hole Brushes
Picking Needles
Material Scoop
Spare Parts
Discharge Pad × 1
Vacuum Pad × 1
Filter Bag × 1

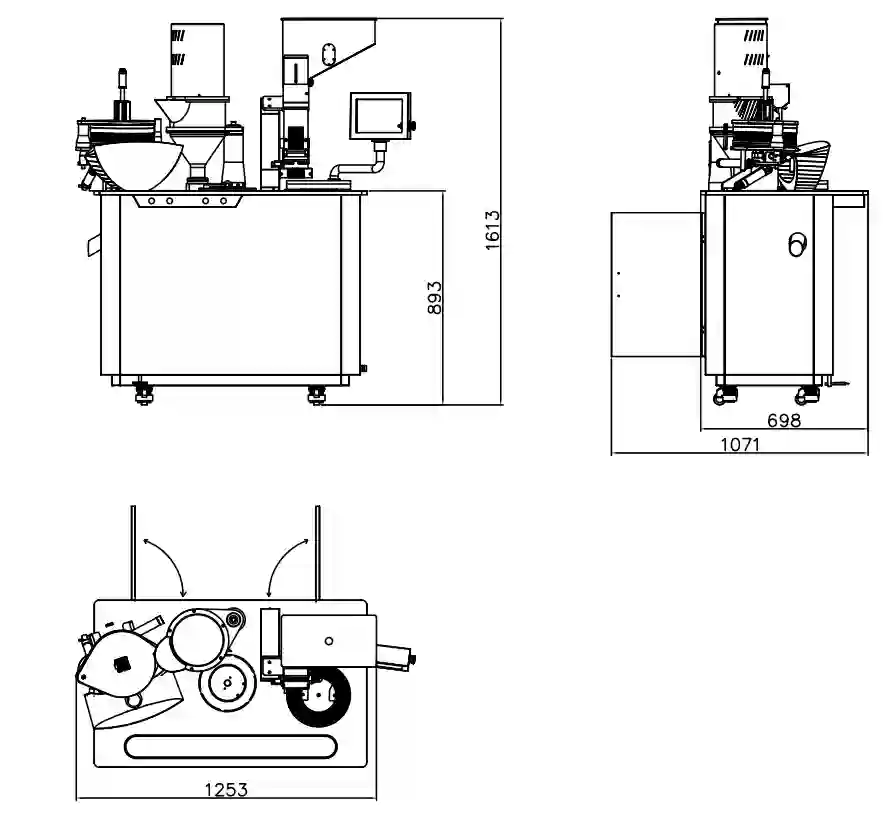

Machine Dimensions
Machine Size: 1140 × 700 × 1630 mm
Circuit Diagram and Pneumatic Diagram available upon request.
FAQ
What is the production capacity of the CGN208-D?
The production capacity is approximately 25,000–30,000 capsules per hour depending on capsule size.
What capsule sizes are supported?
The machine supports capsule sizes from 000# to 5#, including 00L# and 0L#.
What materials can be filled?
The machine is suitable for powders, pellets, and granules.
How long does mold replacement take?
Typical mold replacement and adjustment time is approximately 5–10 minutes.
