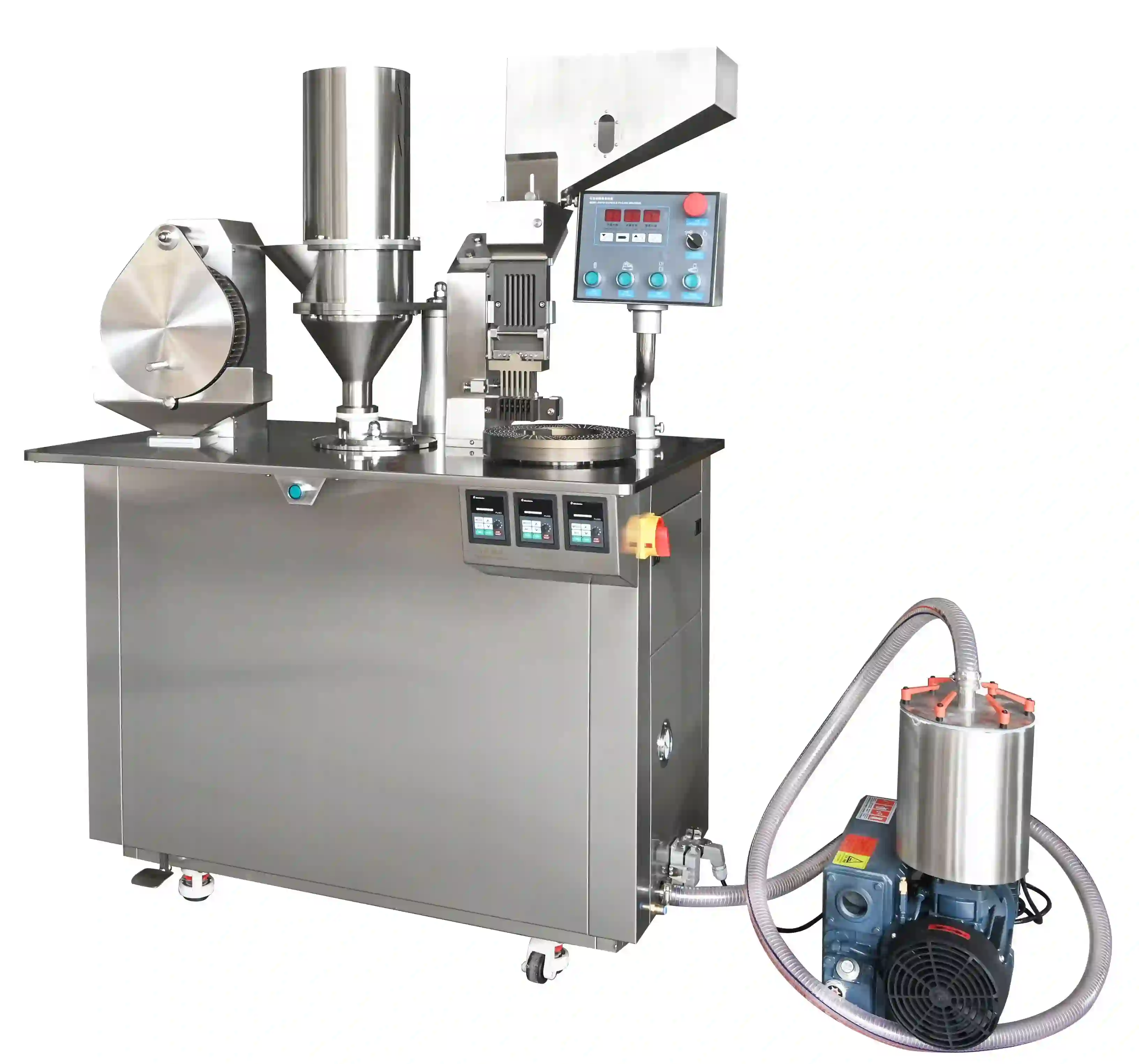

Semi-Automatic Capsule Filling Machine Manufacturer China
(94 Customer Review)
Improve capsule filling efficiency with the CGN208-D Semi-Automatic Capsule Filling Machine. Upgraded capsule orientation system and quick-change mold design reduce setup time and simplify operation. Output: 25,00030,000 Capsules/Hour* Caps
Control System: PLC, Automatic Counting & Variable Frequency Speed Control
Vacuum Pump: 40 m³/h Pumping Rate
Air Requirement: 0.03 m³/min @ 0.7 MPa
Power: 4.0 kW
Machine Size: 1140 × 700 × 1630 mm
Weight: 400 kg Net / 520 kg Gross
Priority: Our machine specifications can be customized, please contact us.
Main Technical Parameters
Item
Specification
Model
CGN208-D
Production Capacity
25,000–30,000 capsules/hour*
Capsule Sizes
000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5#
Filling Material
Powder, Pellets, Granules
Mold Change Time
5–10 min
Total Power
4.0 kW
Compressed Air Consumption
0.03 m³/min
Air Pressure
0.7 MPa
Vacuum Pump Capacity
40 m³/h
Machine Dimensions (L×W×H)
1140 × 700 × 1630 mm
Package Dimensions (L×W×H)
1720 × 870 × 1750 mm
Air Cargo Package Size
1650 × 800 × 1450 mm
Net Weight
400 kg
Gross Weight
520 kg
*Production capacity varies depending on capsule size.
Standard Configuration
Electrical Components
Component
Brand
Model
Vacuum Pump
Ningbo Hongyi
XDB-040 (1.5kW)
Capsule Feeding Motor
Zhejiang Yinda
YE3-7114 (0.25kW)
Powder Feeding Motor
Zhejiang Yinda
YE3-7114 (0.25kW)
Screw Motor
Zhejiang Zhanpeng
CV22-400-5-S-G3-TF (0.4kW)
Frequency Inverter
Shihlin
SC3-021-0.4K
Relay
Omron
MK2P-I 36V
Circuit Breaker
Schneider
OSMC32 Series
Pneumatic Components
Component
Model
Feeding Cylinder
SC-50×125
Capsule Locking Cylinder
SDAD-100×30
Solenoid Valve
4V210-08
Air Regulator
AFR-2000
Air Filter
AFC-2000
Product Introduction
KXT208-D Semi-Automatic Capsule Filling Machine is an upgraded model developed from the DTJ-C capsule filling machine.
Compared with the previous model, the machine simplifies capsule feeding, orientation, and vacuum separation operations while improving capsule loading efficiency. The newly designed capsule orientation assembly adopts cylindrical pin positioning, reducing mold replacement and adjustment time from approximately 30 minutes to 5–8 minutes.
The machine integrates electrical and pneumatic control, automatic counting, PLC control, and variable frequency speed regulation. It is designed to reduce manual operation and labor intensity and is suitable for small and medium-sized pharmaceutical manufacturers, pharmaceutical research institutions, and hospital preparation rooms.
Key Features
Quick Mold Change
The cylindrical pin positioning design reduces mold replacement and adjustment time from approximately 30 minutes to 5–8 minutes.
Improved Capsule Handling
Optimized capsule feeding, orientation, and vacuum separation structure improves capsule loading efficiency and simplifies operation.
Electrical & Pneumatic Control
Integrated electrical and pneumatic control system for stable operation.
PLC & Variable Frequency Control
Equipped with programmable controller, automatic counting device, and variable frequency speed regulation.
Multiple Capsule Sizes
Compatible with capsule sizes:
000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5#
Suitable Filling Materials
Powder (non-moist and non-sticky)
Pellets
Granules
Optional Molds
Available capsule molds:
000#
00L#
00#
0L#
0#
1#
2#
3#
4#
5#
Mold Package Information
Item
Qty
Capsule Disc
1 Set
Pin Disc
1 Pc
Capsule Feeding Plate
1 Pc
Capsule Sorting Plate
1 Pc
Capsule Feeding Fork
1 Pc
Regulating Bar
1 Set
Total Mold Package Weight: 12 kg
Capsule Disc Package Size: 310 × 310 × 90 mm
Standard Packing List
Equipment
Main Machine × 1
Vacuum Pump × 1
Filter Bucket × 1
Tools
Tool Box
Adjustable Wrench
External Hex Wrenches
Internal Hex Wrench Set
Needle Nose Pliers
Oil Can
Flat Screwdriver
Phillips Screwdriver
Powder Scraper
Cover Plate
Mold Hole Brushes
Picking Needles
Material Scoop
Spare Parts
Discharge Pad × 1
Vacuum Pad × 1
Filter Bag × 1
Machine Dimensions
Machine Size: 1140 × 700 × 1630 mm
(Dimension drawing available upon request.)
FAQ
What is the production capacity of the CGN208-D?
The production capacity is approximately 25,000–30,000 capsules per hour depending on capsule size.
What capsule sizes are supported?
The machine supports capsule sizes from 000# to 5#, including 00L# and 0L#.
What materials can be filled?
The machine is suitable for powders, pellets, and granules.
How long does mold replacement take?
Typical mold replacement and adjustment time is approximately 5–10 minutes.
