Downstream Packaging Line Design in Pharmaceutical Production: Optimize Efficiency and Quality

Introduction: Why Downstream Design Determines Line Success

In pharmaceutical manufacturing, the downstream packaging line is often the true bottleneck determining throughput and product quality. Even a high-precision blister packaging machine can underperform if cartoning, case box packaging, or line layout aren't optimized.

In our own experience of maintenance: Many production issues, from jams to damaged packs, stem from poor integration rather than faulty machines.

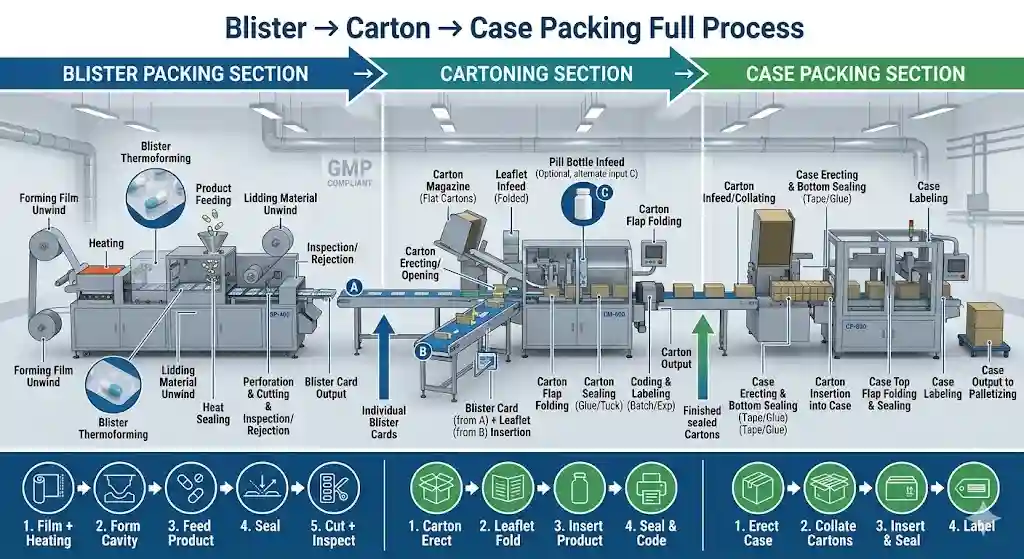

Core Components of Downstream Line Design

1. Blister-to-Carton Transfer

• Ensures blister packs are accurately fed into cartons using gentle conveyors, pushers, or robotic arms.
• Sensors detect pack positions to prevent misalignment.
• Key consideration: speed synchronization to avoid line stoppages.
• Practical note: High-speed lines often require 1–2 buffer zones to handle minor jams without halting the line.

2. Cartoning Machines

• Folds, fills, and closes cartons efficiently, handling various blister formats.
• Inline inspection systems check carton integrity and reject defective packs.
• Real-use tip: Misaligned blisters are one of the top causes of downtime in pharmaceutical lines.

3. Case Packing & Palletizing

• Groups cartons into cases for shipping with precise spacing, orientation, and stacking.
• Automated palletizers improve efficiency on high-volume lines.
• Ergonomics and operator safety must be considered, especially in semi-automated areas.

4. Integration & Line Synchronization

• Real-time communication between machines via PLC or SCADA ensures smooth operation.
• Buffer zones prevent minor issues from stopping the entire line.
• Continuous monitoring allows dynamic speed adjustment and error handling.
• Engineer’s note: Even small misalignments can cascade into larger downtime if buffers or sensors aren’t properly configured.

Common Design Challenges

• Line imbalance: blister machine output exceeds cartoning capacity.
• Product damage: high-speed transfers or misaligned cartons causing broken blisters.
• Downtime propagation: one jam halting the entire line if buffering is insufficient.
• Flexibility vs efficiency: multi-SKU lines require modular, adjustable setups.

Best Practices for Engineers

• Map the Complete Workflow: Include all transfer points and inspection stations.
• Implement Real-Time Feedback: Sensors and PLCs adjust speeds dynamically.
• Design for Flexibility: Accommodate multiple pack sizes and quick SKU changeovers.
• Prioritize Gentle Handling: Reduce mechanical stress on blisters to avoid deformation or sealing failures.
• Routine Validation & Maintenance: Test the entire line under production conditions.

Applications

Optimized downstream lines are essential in:

• Pharmaceutical tablet and capsule production
• OTC drug manufacturing
• Nutraceutical and supplement packaging

FAQ

Q1: Why is downstream line design critical for pharma production?

Even high-precision machines can underperform if transfer, cartoning, or case packing is inefficient.

Q2: How do engineers prevent line stoppages?

Using buffer zones, synchronized machine speeds, and real-time sensors to manage flow.

Q3: Can the same downstream line handle multiple SKUs?

Yes, with flexible conveyors, adjustable cartoning stations, and modular case packing setups.

Optimize Your Downstream Packaging Today

A high-performing blister packaging line is only as effective as its downstream design.

If your line suffers from jams, misaligned packs, or inconsistent throughput:

Our engineers can help you:
• Map and optimize your downstream workflow
• Improve line synchronization and buffer design
• Minimize product damage and downtime
• Ensure regulatory compliance
