Automatic Liquid Filling Sealing Machine | 30-50 Tubes/min

(189 Customer Review)

KXT-60A Fully Automatic Tube Filling Machine. Features 30-50 tubes/min speed, Swiss Leister hot air system, and 316L stainless steel contact parts for cosmetics and pharma.

  • Model: KXT-60A
  • Type: Fully Automatic / Rotary Table
  • Operating Speed: 30 - 50 tubes/min
  • Filling Range: 5 - 250 ml
  • Tube Compatibility: Plastic & Aluminum-Plastic Composite
  • Heating System: Leister Hot Air Generator (Switzerland)
  • Material Contact: 316L Stainless Steel
  • Key Components: Taida PLC, Weinview Touch Screen
  • Dimensions: 1950 x 1000 x 1800 mm

Priority: Our machine specifications can be customized, please contact us.

Technical Specifications

Parameter Specification
Model KXT-60A
Operating Speed 30 - 50 tubes/min
Filling Range 5 - 250 ml
Suitable Tube Length 50 - 210 mm
Suitable Tube Diameter 13 - 50 mm
Total Power Machine: 1.1KW + Hot Air: 3KW + Chiller: 1.9KW
Working Pressure 0.5 - 0.7 MPa
Dimensions (L×W×H) 1950 × 1000 × 1800 mm
Net Weight Approx. 850 kg

Key Component Configuration

Component Brand / Origin
Hot Air Generator LEISTER (Switzerland)
Color Code Sensor SUNX (Japan)
PLC & Inverter TAIDA (Taiwan)
Touch Screen WEINVIEW
Coder OMRON
Pneumatic Components AIRTAC
Filling Detect AUTONICS

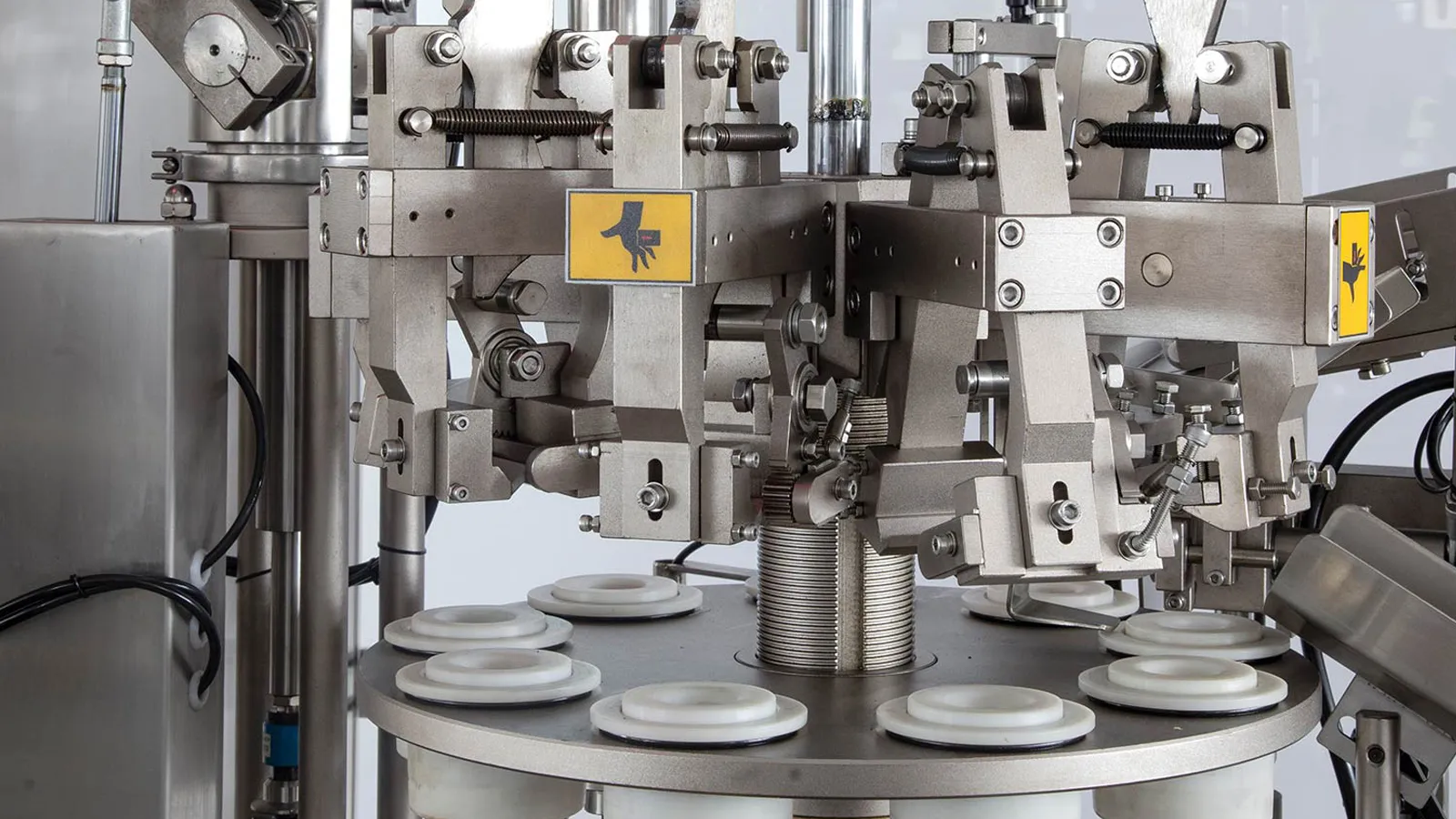

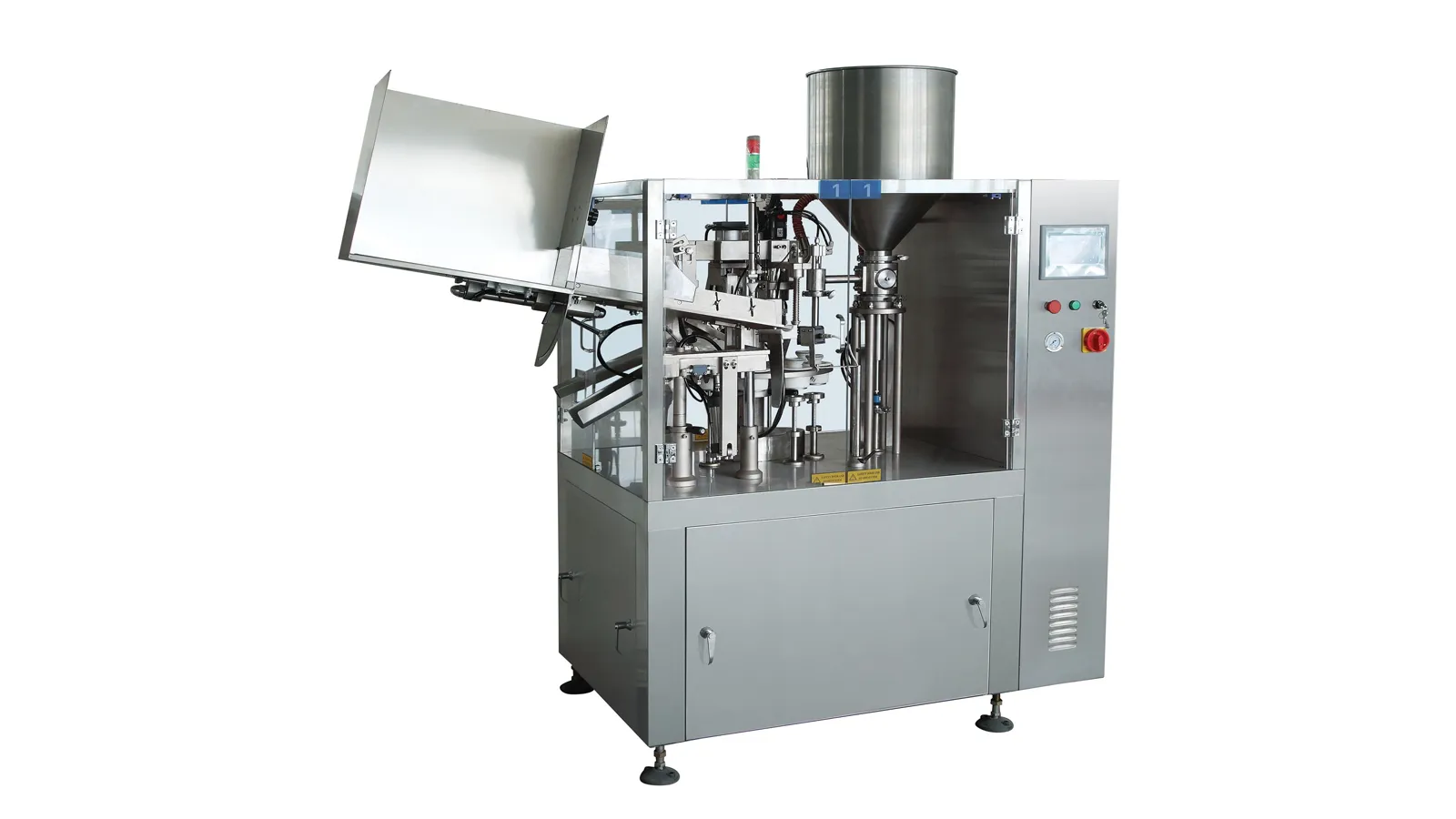

The KXT-60A Automatic Tube Filling and Sealing Machine is a high-performance solution designed specifically for the rigorous demands of the cosmetics and pharmaceutical industries. Importing advanced foreign technology, this machine fully automates the process of tube feeding, benchmarking, heating, filling, sealing, and batch number printing. It is the ideal choice for packaging viscous products like facial cleansers, ointments, hand creams, and hair dyes into plastic or composite tubes.

Key Features & Brand Components

  • Fully Automated Workflow: Features automatic tube feeding, automatic benchmarking (orientation), and automatic discharging, significantly reducing manual labor.
  • Swiss Leister Heating System: Equipped with a LEISTER hot air generator (Switzerland), ensuring stable temperature control and high-quality, aesthetic seals for every tube.
  • Intelligent Safety System: Includes "No Tube, No Filling" protection, overload alarm, low air pressure stop, and door opening safety stop functions.
  • Hygienic Design: All parts in contact with the material are made of premium 316L Stainless Steel, fully complying with GMP standards for medicine and food.
  • Viscous Filling Capability: The mechanical piston filling system is optimized for high-viscosity materials and includes a tail cutting function to prevent stringing or dripping.

Industrial Applications

The KXT-60A is widely used for packaging semi-solid products in:

  • Cosmetics Industry: Face wash, sunblock, BB cream, hair conditioner.
  • Pharmaceutical Industry: Medical ointments, antifungal creams, gels.
  • Daily Chemical Industry: Toothpaste, shoe polish, adhesives.

Upgrade to Fully Automatic Packaging

Ensure hygiene and efficiency with the GMP-compliant KXT-60A. Contact Kxite Machinery for a proposal.

Get a Quote Now


Want to See How the KXT-60A Performs in Real Production?

Watch the video to explore how our Automatic Liquid Filling Sealing Machine | 30-50 Tubes/min delivers stable, efficient, and fully automated performance. From paper feeding to bottom sealing and stacking—see the complete process in action.

Looking for a machine that fits your specific production needs?
We offer multiple models and can provide custom machine configurations tailored to your cup or bowl sizes, coating materials (PE, PLA, water-based), and output goals.

Contact Us for More Details

Get in Touch with Our Team to Discuss Your Machine Needs
